How to Layout Your Room Like a Pro

I once watched a client try to shove a massive, deep-seat "cloud sofa" into a modest mid-century living room. Physically, it fit through the door. But once it was down? Nobody could walk to the window without shimmying sideways like a crab.

It was a heartbreaking waste of money, and it happens more often than you think.

Design isn't just about aesthetics; it is fundamentally about ergonomics and flow. A room that looks good but functions poorly is a failure. As an architect, I spend half my time looking at finishes, but the other half is spent obsessing over millimeters.

If you are planning a renovation or just buying a new dining table, you need to know the numbers. This guide covers the standard dimensions and critical clearance zones—the "invisible" space you need to keep clear—so you can build a layout in RoomyLab that actually works in real life.

1. Living Room Standards: Avoiding the Obstacle Course

The living room is your high-traffic hub. The most common error here is prioritizing the size of the furniture over the size of the walkways.

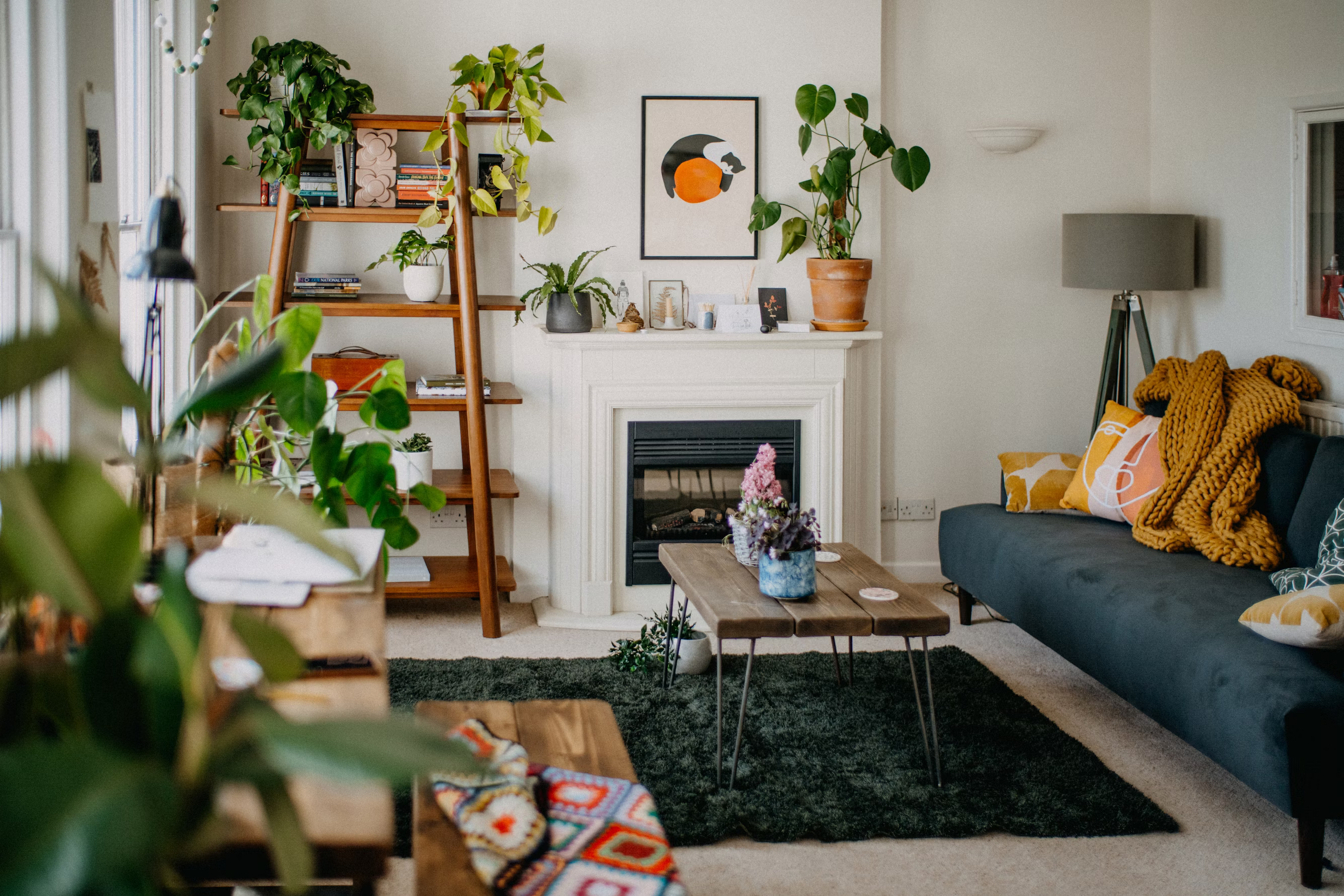

The Coffee Table Equation

The relationship between your sofa and coffee table defines the comfort of the lounge area.

• The Gap: Keep 14 to 18 inches between the edge of the sofa and the coffee table. Less than 14 inches, and you’ll bang your shins every time you stand up. More than 18 inches, and you have to awkwardly lunge to put your drink down.
• The Height: Your table should be within 1 to 2 inches of your sofa cushion height. If it’s too low, it looks like a trip hazard; too high, and it feels like a dining table.

Traffic Flow and Walkways

Never force people to walk through a conversation area if you can help it.

• Major Arteries: For main entrances or pathways to other rooms, you need a minimum of 30 to 36 inches.
• The "Squeeze": For minor paths, like getting between an armchair and a side table to plug in a lamp, you can get away with 18 to 24 inches.

The TV Rule (Stop Guessing)

Viewing distance is math, not a feeling. It depends entirely on resolution and screen size.

• The Formula: Screen Size (Diagonal) x 1.5 = Minimum Viewing Distance.
• Real World Example: If you buy that massive 65-inch TV, your sofa needs to be roughly 8 feet (96 inches) back. If you are closer than that, you'll be turning your head to see the corners of the screen.

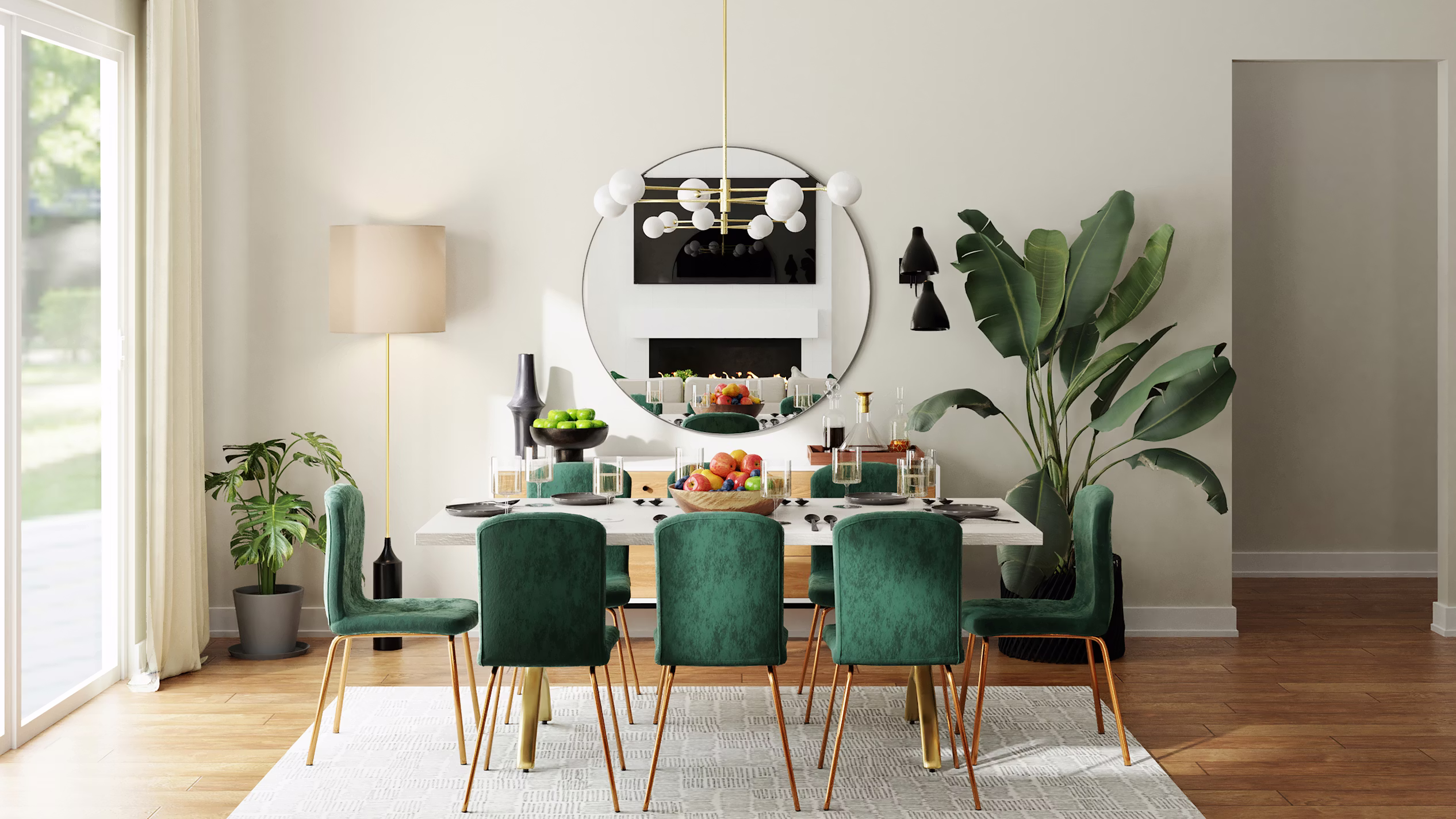

2. Dining Room: The "Slide and Rise"

The dining room is the number one place where people get measurements wrong. A table looks small in a showroom, but massive in your dining nook.

The 36-Inch Rule

You must allow a minimum of 36 inches from the edge of the table to the nearest wall or sideboard.

• Why? A standard dining chair requires about 24 inches to sit in. You need that extra 12 inches to slide the chair back and stand up without hitting the wall.
• Pro Tip: If you want someone to be able to walk behind a seated guest (e.g., to serve food), you need 42 to 48 inches of clearance.

Chandelier Height

While we are here, let’s fix your lighting. The bottom of your chandelier should hang 30 to 36 inches above the table surface. Any lower and it blocks conversation; any higher and it feels disconnected from the dining space.

3. Bedroom Spacing: Every Inch Counts

Bedrooms are often the tightest rooms in the house. The bed dominates the space, so clearances are critical for making the room feel breathable.

Circulation Zones

• The Sides: Leave at least 24 inches on either side of the bed. This is the minimum required to comfortably make the bed and access a nightstand without feeling claustrophobic.
• The Foot: Try to keep 30 inches clear at the foot of the bed. If you have a dresser there, remember that drawers extend out 10-18 inches. If you don't account for that, you won't be able to open your drawers fully.

Mattress Dimensions Cheat Sheet

Knowing the exact footprint is vital for your floor plan:

• Twin: 38" x 75"
• Full: 54" x 75"
• Queen: 60" x 80" (The most popular size)
• King: 76" x 80"
• California King: 72" x 84" (Narrower, but better for tall people)

4. Kitchen Ergonomics: The Work Triangle

If you are remodeling a kitchen, relying on "eye-balling it" is a recipe for disaster. Appliances have strict opening requirements.

• Aisle Width: For a one-cook kitchen, 42 inches is the standard aisle width. If you often have two people cooking, bump this to 48 inches.
• The Island Overhang: If you want bar stools at your island, the countertop must overhang the cabinet by at least 12 inches to provide knee space. If you have the room, 15 inches is much more comfortable.
• Counter Height: Standard is 36 inches. Bar height is 42 inches. Don't buy 30-inch bar stools for a 36-inch counter; you won't fit your legs under it!

How to Visualize This in RoomyLab

Reading numbers is one thing; seeing them in your actual space is another. I built RoomyLab specifically to solve this visualization problem. Here is how I use it for client checks:

1. Draw the Shell: Use the Wall Tool to create your room. Be precise—enter the exact length and width of your actual walls.
2. Add "Blockers": Before adding fun furniture, add the fixed elements. Drag in doors, windows, and radiators. Pay attention to the "door swing" radius shown in the tool—this is a no-go zone for furniture.
3. Use the Dimension Tool: This is the most important step. Don't just drag a sofa in and guess. Use the Dimension Tool to draw a line 36 inches from your wall. That is your "limit line."
4. Check the Flow: Drag your furniture into place. If your sofa overlaps that limit line, you know immediately that your walkway is too tight before you spend a dime.

3 Expensive Mistakes to Avoid

1. The "Postage Stamp" Rug: A rug should be large enough that at least the front legs of all furniture sit on it. In a dining room, the rug must extend 24 inches beyond the table on all sides, or chair legs will catch on the rug edge when guests slide out.
2. Ignoring Vertical Clearance: Measuring width is easy, but don't forget height. If you buy a tall armoire, ensure it clears your ceiling molding. Also, ensure standard doorways (usually 80 inches high) can actually accommodate the furniture delivery.
3. Blocking Air Returns: Never place large furniture flush against a wall vent or radiator. It ruins your HVAC efficiency and can warp your furniture over time.

Frequently Asked Questions

Q: What is the minimum hallway width code? A: Generally, residential building codes require hallways to be a minimum of 36 inches wide. However, for moving furniture and general comfort, 42 inches or wider is significantly better if you are building from scratch.

Q: How high should I hang artwork? A: The center of the artwork should be at eye level, which is generally considered 57 to 60 inches from the floor. If hanging art above a sofa, leave 4 to 8 inches of space between the top of the sofa and the bottom of the frame.

Q: Can I put a King bed in a 10x10 room? A: Technically, yes, but I advise against it. A King bed is 76" wide. In a 120" wide room (10ft), that leaves you only 22 inches on each side. That is below the recommended 24-inch minimum, making the room feel incredibly cramped and difficult to clean. Sticking to a Queen is the smarter architectural move.
